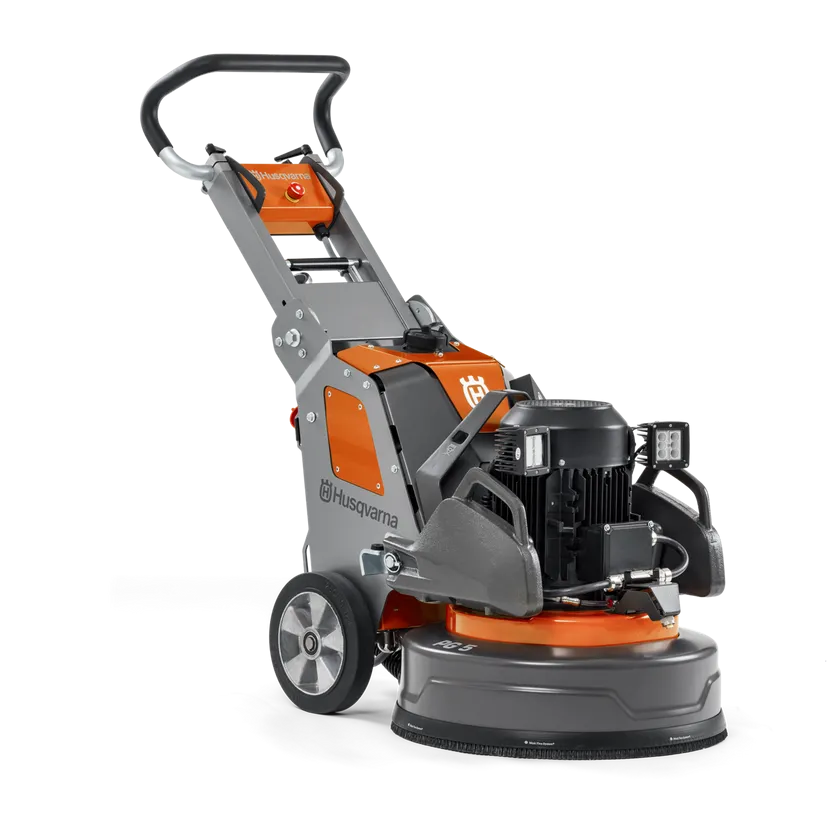

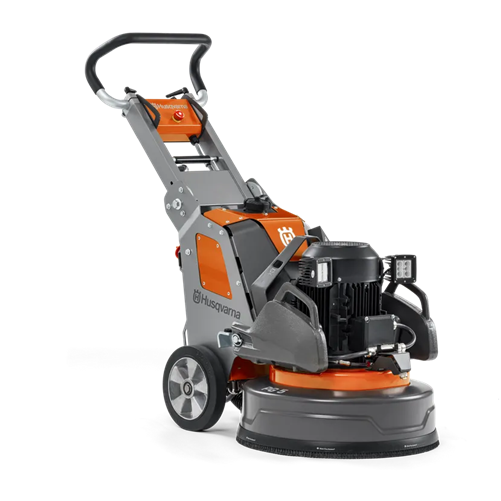

The Husqvarna PG 5 is a compact yet powerful planetary floor grinder designed for versatility in surface preparation tasks. Equipped with a 5.4 hp (4 kW) motor and three 9.1-inch grinding discs, it offers a 20.3-inch grinding width, making it suitable for various applications, including coating removal, concrete grinding, and natural stone polishing.
Key features include a mist cooler system that sprays a fine mist on the floor, cooling the diamond tools to enhance cutting performance and reduce the risk of glazing, thereby increasing productivity. The sealed grinding head and dust-sealed electrical cabinet with external cooling technology protect internal components from dust and water intrusion, ensuring durability and low maintenance.
The PG 5's ergonomic design features an adjustable handle for improved user comfort and control. Its integrated weights allow for adjustable grinding pressure, and the split-chassis design with quick connectors facilitates easy transportation, fitting into most standard vehicles. The EZchange™ tool holder system enables quick and hassle-free tool changes, enhancing efficiency on the job site.
Optional accessories, such as magnetic LED lights, can be added to improve visibility during operation. Additionally, the PG 5 is compatible with Husqvarna Fleet Services™, a digital asset management service that provides key machine data for better fleet management.
Overall, the Husqvarna PG 5 combines power, durability, and user-friendly features, making it an excellent choice for professionals seeking a reliable floor grinder for a wide range of surface preparation tasks.
- Engine Power: 5.4 hp (4 kW)
- Rated Input Power: 5.4 hp
- Voltage: 200–240 V
- Phases: Single-phase
- Rated Current: 30 A
- Frequency: 50–60 Hz
- Pins: 2P+E
- Grinding Width: 20.3 inches (515 mm)
- Number of Grinding Discs: 3
- Grinding Disc Diameter: 9.1 inches (230 mm)
- Grinding Disc Speed:
- Minimum: 353 RPM
- Maximum: 1,176 RPM
- Planetary Head Speed (Max): 79 RPM
- Direction of Rotation: Both directions
- Tool Holder System: EZchange™ Airflow
- Type of Operation: Push
- Dimensions:
- Length: 35.7 inches (907 mm)
- Width: 22.1 inches (562 mm)
- Height: 28.4 inches (721 mm)
- Weight: 403 lbs (183 kg)
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Powerful 5.4 HP Motor: Delivers robust performance for various grinding and polishing tasks.
- 20.3-Inch Grinding Width: Equipped with three 9.1-inch grinding discs, providing efficient coverage for medium to large surface areas.
- Mist Cooler System: Sprays a fine mist on the floor to cool diamond tools, enhancing cutting performance and reducing the risk of glazing.
- Sealed Grinding Head: Hermetically sealed design with a 1,000-hour service interval, preventing dust and water intrusion for enhanced durability.
- Dust-Sealed Electrical Cabinet: Incorporates external cooling technology to protect internal components from dust, ensuring reliable operation and low maintenance.
- Ergonomic Adjustable Handle: Designed for improved user comfort and control during operation.
- Sturdy Steel Floating Shroud: Adapts to floor surfaces for efficient dust collection without the need for manual adjustments.
- Adjustable Grinding Pressure: Integrated weights allow for increased grinding pressure to suit specific job requirements.
- EZchange™ Tool Holder: Facilitates quick and easy tool changes, enhancing productivity on the job site.
- Split-Chassis Design: Allows for easy separation of the chassis from the grinding head, facilitating transportation and storage.
- Optional Magnetic LED Lights: Improve visibility during operation, easily attachable via magnetic mounts.
- Fleet Ready: Compatible with Husqvarna Fleet Services™, a digital asset management service that provides key machine data for better fleet management.
|
|
|
|
|
|
|
