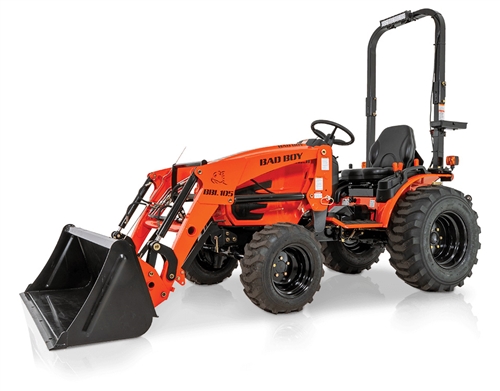

The Bad Boy 1025 Sub-Compact Tractor is your go-to solution for tackling tasks with ease in tight spaces. Engineered for efficiency and reliability, this compact yet powerful tractor is perfect for navigating confined areas without sacrificing performance. With its robust engine and agile design, it handles various jobs effortlessly. From lawn maintenance to light-duty hauling, the Bad Boy 1025 Sub-Compact Tractor delivers outstanding results. Trust Bad Boy for superior quality and performance in every use.

For more information, https://badboycountry.com/tractors/3026-tractor.

ENGINE

• Engine: 3 Cylinder, Water-Cooled, Diesel
• Engine HP @ RPM: 24.6 hp
• Displacement: 77.3"
• Number of Cylinders: 3
• Fuel Tank: 5.8 gal

DRIVETRAIN

• Transmission: HST
• Number of Speeds: 2 Range
• Clutch: No
• Brakes: Wet, Multi-Disc

HYDRAULICS

• Type: Power Assisted Hydro-Static
• Total Hydraulic Flow (Power Steering + Implement): 7.0 (2.8+4.2) / 28.1 (10.5+15.8)
• 3-Point Hitch: CAT 1
• Rear Remote Valve: N/A
• 3-Point Hitch Lift Capacity @ 24" Behind Lift Point @ Ball Ends: 450 lbs.

DIMENSIONS

• Overall Length: 104"
• Overall Width: 45.8"
• Overall Height: 91.3"
• Wheelbase: 57.5"
• Minimum Ground Clearance: 9.4"
• Weight: 1,638 lbs.

PTO

• Type: Independent
• Rear (Mid) PTO Speed: 540
• PTO HP: 18.8

ELECTRICAL

• Battery: 12 V, 540 CCA
• Alternator: 12 V, 50 A

WHEELS & TIRES

• Ind (Front): 23 x 8.50-12
• Ind (Rear): 12 x 16.5

LOADER - Model BBL300

• Standard Bucket Size: 50"
• Maximum Lift Height: 75.5"
• Dig Depth: 4.6"
• Lift Capacity to Full Height at Pivot Pin: 992 lbs.
• Breakout Force: 1,531 lbs.
• Shipping Weight: 573 lbs.

BACKHOE - MODEL BBH300

• Standard Bucket Size: 12"
• Type: Subframe-Mounted, Quick Attach
• Maximum Dig Depth: 76"
• Dig Force Bucket: 2,050 lbs.
• Shipping Weight: 816 lbs.
