ADA Dome Cast-in-Place Tiles
ADA Dome Cast-in-Place Tiles

Alternative Views:


Product Code: CASTINPLACE


ADA Cast-in-Place Tile Color:

ADA Cast-in-Place Tile Size:

Call for Pricing
Description Specifications

The most trusted Truncated Dome Detectable Warning solution in the world.

The Cast-in-Place Paver panel is a great long-term solution for any project or climate. Every one of our ADA pavers is made with a durable exterior homogenous glass, carbon, and fiberglass reinforced composite material; the thick, heavy panel and sturdy embedment ribs ensure a strong bond and superior structural support.

ADA Solutions’ Cast-in-Place Paver Tactile Surface products provide long-term durability. Suited for new construction and modified curb ramps, these truncated dome pavers hold up in any kind of weather and tolerate a great deal of abuse. The homogenous glass and carbon composite material is colorfast and UV stable, while integrated fiberglass truncated domes allow for a more durable tactile surface.

With a center-to-center spacing of 2.35 inches, the truncated domes are ideally designed to accommodate walkers, wheelchairs, shopping carts, and similar apparatuses. The dimensions of our cast-in-place paver detectable warning surface tiles can be customized for a special project if none of our standard sizes is suitable for the location. All our tactile warning surface products are approved by all major Departments of Public Works (DPWs), municipalities, and state Departments of Transportation (DOTs). ADA Solutions is also in full compliance with the Americans with Disabilities Act Accessibility Guidelines (ADAAG) and Public Right-of-Way (PROW). California Title 24 requirements are also met by our truncated dome tactile surfaces.

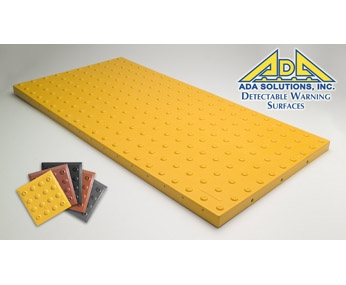

The truncated dome cast-in-place paver detectable warning surface comes in a variety of approved colors. Choose from:
  • Federal Yellow
  • Brick Red
  • Dark Gray
Features

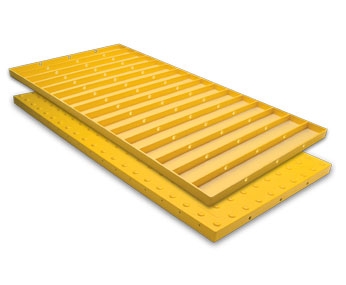

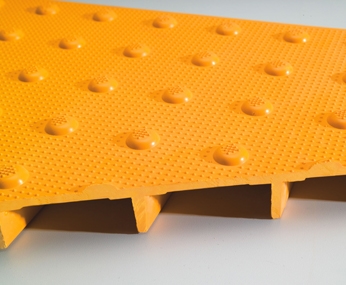

  • ¼” thick with embedded 3” ribs, providing a tactile surface along the center

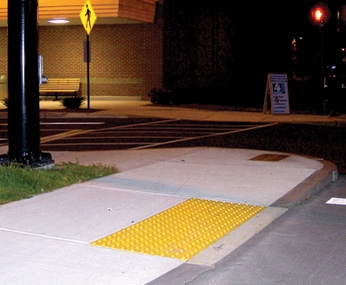

  • Installed in newly built curb ramps or on construction sites

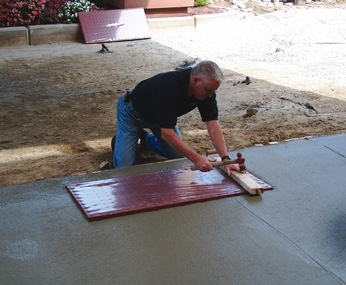

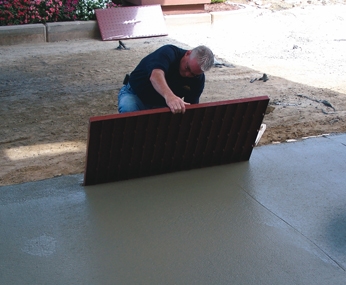

  • Pressed into freshly poured concrete for a fully secure fit
  • Protected by plastic sheeting across its entire surface
  • Available in standard sizes (24” x 48”, 24” x 60”, 36” x 48”, and 36” x 60”)

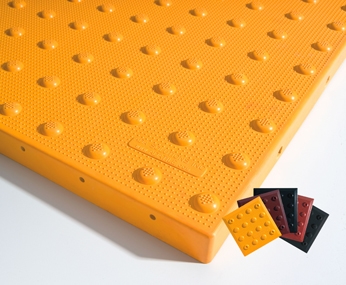

  • Raised truncated domes with a diameter of 0.9” and a height of 0.2”
  • Body thickness is 0.25” not including truncated domes

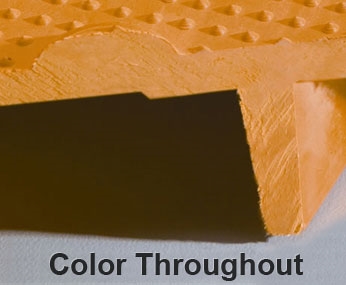

  • Does not rely on any type of paint coating to achieve color stability
