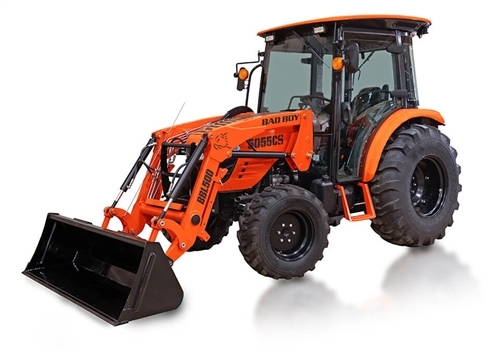

The Bad Boy 5055 Tractor stands as the most powerful model in the Bad Boy lineup, delivering 55 horsepower through a robust 2.3L 4-cylinder diesel engine. Designed for demanding agricultural and property maintenance tasks, it offers a loader lift capacity of 2,700 lbs and features 4WD with a differential lock to maximize traction and pulling power. Operators can choose between a 16-speed Shuttle Shift or a 4-range Hydro Max transmission to suit their specific needs. For enhanced comfort, the 5055 is available with an optional climate-controlled cab and a heated, air-ride leather seat, ensuring productivity in any weather condition. Built with heavy-gauge, welded steel, the 5055 is engineered for durability and long-lasting performance.
| DIMENSIONS | 5055S | 5055H | 5055CS | 5055CH | | OVERALL LENGTH, IN, 3P | 127.4 | 127.4 | 127.4 | 127.4 | | OVERALL WIDTH, IN | 64.9 | 64.9 | 64.9 | 64.9 | | HEIGHT TO TOP OF ROPS, IN | 98.4 | 98.4 | 97 | 97 | | WHEELBASE, IN | 71.1 | 71.1 | 71.1 | 71.1 | | MIN. GROUND CLEARANCE, IN | 15.5 | 15.5 | 15.5 | 15.5 | | WEIGHT, LB | 3,836 | 3,836 | 4,349 | 4,349 |
| PTO | 5055S | 5055H | 5055CS | 5055CH | | 540, 540E | 584, 791 | 584, 791 | 584, 791 | 584, 791 |
| HYDROSTATIC | 5055S | 5055H | 5055CS | 5055CH | | MAXIMUM TOTAL FLOW, GPM | 16.4 | 15.7 | 16.4 | 15.7 | | IMPLEMENT PUMP CAP, GPM | 11.4 | 10.7 | 11.4 | 10.7 | | STEERING PUMP CAP, GPM | 5 | 5 | 5 | 5 | | 3P CATEGORY | 1 | 1 | 1 | 1 | | HITCH LIFT CAPACITY, LB | 3306 | 3306 | 3306 | 3306 | | AT 24 INCHES BEHIND LINK ENDS, LB | 2425 | 2425 | 2425 | 2425 |
| ENGINE | 5055S | 5055H | 5055CS | 5055CH | | MODEL | A2300T3-UTR_4 | A2300T3-UTR_4 | A2300T3-UTR_4 | A2300T3-UTR_4 | | FUEL SYSTEM | WATER-COOLED DIESEL | WATER-COOLED DIESEL | WATER-COOLED DIESEL | WATER-COOLED DIESEL | | DISPLACEMENT, IN | 139.5 | 139.5 | 139.5 | 139.5 | | NUMBER OF CYLINDERS | 4 | 4 | 4 | 4 | | RATED ENGINE POWER, HP | 55 | 55 | 55 | 55 | | RATED SPEED, RPM | 2600 | 2600 | 2600 | 2600 | | MAX PTO POWER, HP | 44 | 44 | 44 | 44 | | DPF/SCR/DOC | DPF / DOC | DPF / DOC | DPF / DOC | DPF / DOC |
| TRNASMISSION | 5055S | 5055H | 5055CS | 5055CH | | TYPE | SYNCHRO | HST | SYNCHRO | HST | | NUMBER OF GEARS | 16F/16R | 4 RANGE | 16F/16R | 4 RANGE |
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- 55 Horsepower
- 2,700 lbs. Loader Lift Capacity At Pins
- Hydro Max or Shuttle Shift Transmission Option
- Optional Climate-Controlled Cab with Leather, Heated Seat
- Power Steering
- Easy to Adjust Pin Style Stabilizer
- Cruise Control
- 4WD
|
|
|
|
|
|
|
