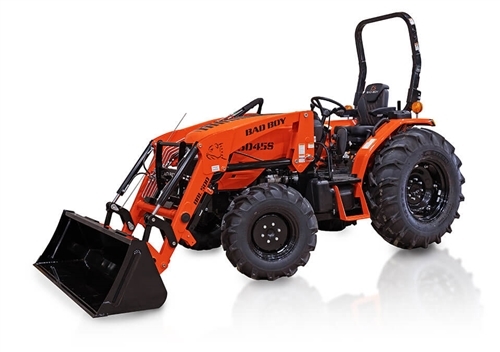

The Bad Boy 5045 Tractor is built for power, versatility, and durability—perfect for a wide range of agricultural, landscaping, and utility tasks. With multiple transmission options and configurations available, the 5045 offers flexibility to match your specific needs. Each model is powered by a robust 48 HP diesel engine and designed with 4WD capability, a strong front loader lift capacity, and a dependable 3-point hitch system. Whether you’re hauling, digging, mowing, or grading, the 5045 is engineered to deliver reliable performance and smooth operation in any environment.
|
Dimensions
|
5045S
|
5045H
|
5045CS
|
5045CH
|
|
OVERALL WIDTH, IN
|
127.4
|
127.4
|
127.4
|
127.4
|
|
HEIGHT TO TOP OF ROPS, IN
|
64.9
|
64.9
|
64.9
|
64.9
|
|
HEIGHT TO TOP OF ROPS, IN
|
98.4
|
98.4
|
97
|
97
|
|
WHEELBASE, IN
|
71.1
|
71.1
|
71.1
|
71.1
|
|
MIN. GROUND CLEARANCE, IN
|
15.5
|
15.5
|
15.5
|
15.5
|
|
WEIGHT, LB
|
3,831
|
3,831
|
4,349
|
4,349
|
|
PTO
|
5045S
|
5045H
|
5045CS
|
5045CH
|
|
540, 540E
|
584, 791
|
584, 791
|
584, 791
|
584, 791
|
|
Hydrostatic
|
5045S
|
5045H
|
5045CS
|
5045CH
|
|
MAXIMUM TOTAL FLOW, GPM
|
16.4
|
15.7
|
16.4
|
15.7
|
|
IMPLEMENT PUMP CAP, GPM
|
11.4
|
10.7
|
11.4
|
10.7
|
|
STEERING PUMP CAP, GPM
|
5
|
5
|
5
|
5
|
|
3P CATEGORY
|
1
|
1
|
1
|
1
|
|
HITCH LIFT CAPACITY, LB
|
3306
|
3306
|
3306
|
3306
|
|
AT 24 INCHES BEHIND LINK ENDS, LB
|
2425
|
2425
|
2425
|
2425
|
|
ENGINE
|
5045S
|
5045H
|
5045CS
|
5045CH
|
|
MODEL
|
A2300N2-UTR_4
|
A2300N2-UTR_4
|
A2300N2-UTR_4 | A2300N2-UTR_4 |
|
FUEL SYSTEM
|
WATER-COOLED DIESEL
|
WATER-COOLED DIESEL
|
WATER-COOLED DIESEL
|
WATER-COOLED DIESEL
|
|
DISPLACEMENT, IN
|
139.5
|
139.5
|
139.5
|
139.5
|
|
NUMBER OF CYLINDERS
|
4
|
4
|
4
|
4
|
|
RATED ENGINE POWER, HP
|
48
|
48
|
48 |
48 |
|
RATED SPEED, RPM
|
2600
|
2600 |
2600 |
2600 |
|
MAX PTO POWER, HP
|
38.4
|
38.4 |
38.4 |
38.4 |
|
DPF / SCR / DOC
|
DPF / DOC
|
DPF / DOC
|
DPF/DOC | DPF/DOC |
| TRANSMISSION | 5045S | 5045H | 5045CS | 5045CH | | NUMBER OF GEARS | 16F/16R | 4 Range | 16F/16R | 4 Range |
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- 48 Horse Power
- 2,700 lbs. Loader Lift Capacity At Pins
- Hydro Max or Shuttle Shift Transmission Option
- Optional Climate-Controlled Cab with Leather, Heated Seat
- Power Steering
- Easy to Adjust Pin Style Stabilizer
- Cruise Control
- 4WD
|
|
|
|
|
|
|
